Electric contact bimetallic thermometer
Product Model:WSSX
Main technical parameters

(1)Electric contact type: Upper and lower limit contact 、 single upper limit contact 、 double upper limit contact.
(2)Accuracy class:
a.Upper and lower limit electric contact 、single upper limit electric contact:class1.5 ;
b.Double upper limit electric contact:the first upper limit is class 1.5;the second upper limit is class 4;
c.The setted error of contact is 1.5 times of the indicating value basic error.
(3)Rated power on contact 10W:
a.The maximum working voltage on the contact is 220V AC and maximum working current on the contact is 1A(non inductive
load );
b. Working voltage recommended is lower than 36V , but shouldn't be less than 12 V to guarantee that the contact moves reliablly.
(4)Dial plate nominal diameter:100mm 、60mm.

(5) Time constant, nominal pressure, jacket material are as same as WSS thermometer.
◆ The profile and electric diagram

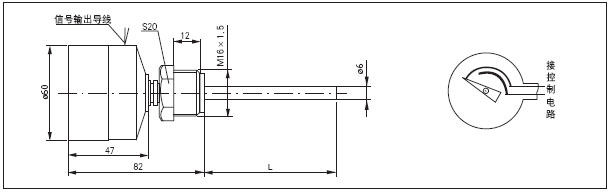

◇ The profile and electric diagram of WSSX-301 electric contact bimetallic thermometer

(mm)

Model

Measuring
range℃

Value of
division℃

Insert length

Jacket diameter

Installation
thread

Electric
contact type

Dial plate
nominal diameter

WSSX-301
WSSX-302

-80~+40*

2

75
100
150
200
250
300

6

M16×1.5

Single upper
limit terminal

60

-40~+80*

0~100

0~150

0~200

5

0~300

Note:The measuring range with * doesn't include insert length of 75mm.

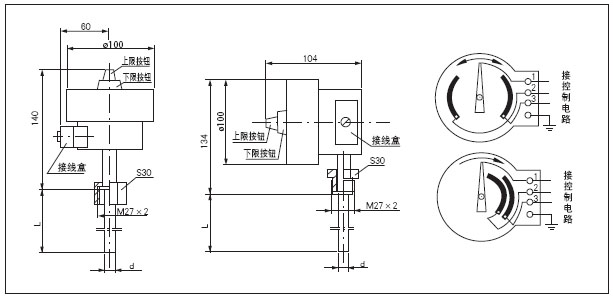

WSSX- 401 411/402 412 electric contact bimetallic thermometer

(mm)

                                           Table7                                               (mm)

Model



Measuring
range℃

Value of
division℃

Insert length

Jacket diameter

Installation
thread

Dial plate
nominal diameter

WSSX-401
WSSX-402
WSSX-411
WSSX-412

-80~+40*

2

75
100
150
200
250
300
400
500
750
1000

10

M27×2

100

-40~+80*

0~100

0~150

0~200

5

0~300

1250
1500
1750
2000

12

0~400

10

0~500*

Note: For the measuring range with ..,when the insert length is 75mm ,that shall be negotiated separately
